IML -Round Containers
High quality of products, carefully selected raw materials
Srinidhi Impex offers a broad range of in-mold labeled containers. The capacity of our plastic IML containers available in two sizes: 500ml & 750ml. Made with recyclable polypropylene (PP), these plastic containers are eco-friendly packaging for food processors, candy manufacturers, ice cream factories, bakeries, biscuit packers, supermarkets, and also suitable for cosmetic or daily chemical packaging applications.
| S.No. | Parameter (CONTAINER) | Unit | Standard Value | Tolerance (+/-) |
| 1 | Volume of closed container with lid | ml | 505 | 5 |
| 2 | Gross Volume of container | ml | 550 | 5 |
| 3 | Weight of container | gm | 22.0 | 2 |

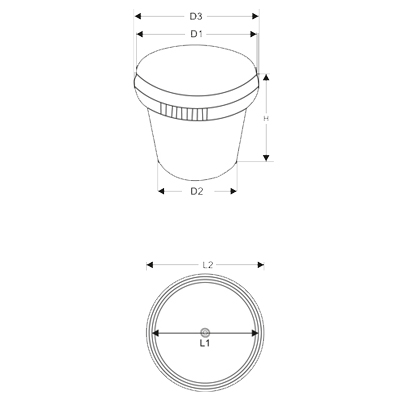

| 4 | Top Diameter (Internal) (D1) | mm | 86.5 | 0.5 |
| 5 | Bottom Diameter ( Internal ) (D2) | mm | 72.6 | 0.5 |
| 6 | Collar dia. (External) (D3) | mm | 98 | 1.0 |
| 7 | Thickness | mm | 0.6 | 0.1 |
| 8 | Height | mm | 114.2 | 0.5 |
| Parameter (LID) | ||||
| 1 | Top Diameter (Internal) (L1) | mm | 85.8 | 0.5 |
| 2 | Diameter (External) (L2) | mm | 89.4 | 0.5 |
| 3 | Thickness | mm | 0.6 | 0.1 |
| 4 | Weight of lid | gm | 5.0 | 1.0 |
| 5 | Height | mm | 7.7 | 0.3 |
| S.No | Parameter | Unit | Standard | Tolerance (+/-) |
| 1 | Volume of closed container with lid | ml | 750 | 15 |
| 2 | Gross volume of container | ml | 820 | 15 |
| 3 | Weight of container | gm | 32.5 | 2 |
| 4 | Top Diameter ( Internal) ( L1) | mm | 112 | 1.0 |
| 5 | Bottom Diameter ( External) ( L 2) | mm | 86 | 1.0 |
| 6 | Collar Dia ( External) | mm | 122 | 1.0 |
| 7 | Thickness | mm | 0.65 | 0.15 |
| 8 | Height ( H) | mm | 127.5 | 1.0 |
| Parameter {LID} | ||||
| 1 | Top Diameter ( internal) (L1) | mm | 112 | 1.0 |
| 2 | Diameter ( External) ( L 2) | mm | 118.6 | 1.0 |
| 3 | Thickness | mm | 0.65 | 0.15 |
| 4 | Weight of Lid | gm | 9.0 | 1.0 |
| 5 | Product Height( Container+ Lid) | mm | 128.6 | 1.0 |
