IML -Oval Containers

High quality of products, carefully selected raw materials

  • Product Specification - 500 ML

Srinidhi Impex offers a broad range of in-mold labeled containers. The capacity of our plastic IML containers available in two sizes: 500ml & 750ml. Made with recyclable polypropylene (PP), these plastic containers are eco-friendly packaging for food processors, candy manufacturers, ice cream factories, bakeries, biscuit packers, supermarkets, and also suitable for cosmetic or daily chemical packaging applications.

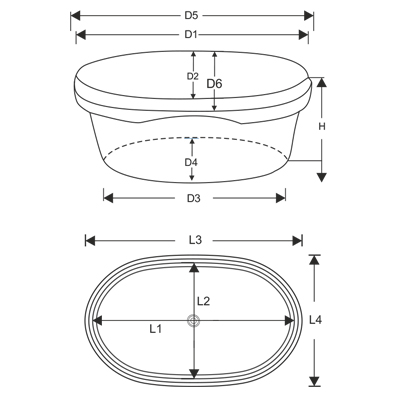

S. No. Parameter (CONTAINER) Unit Standard Value Tolerance (+/-)
1 Volume of closed container with lid ml 500 10
2 Weight of container gm 22.0 2.0
3 Top Diameter (internal) (D1) mm 134.5 0.3
4 Top Diameter (internal) (D2) mm 83.5 0.3
5 Bottom Diameter (External) (D3) mm 125.6 0.3
6 Bottom Diameter (External) (D4) mm 75.6 0.3
7 Total Length (External) (D5) mm 145 0.3
8 Total Length (External) (D6) mm 94.3 1.0
9 Thickness mm 0.6 0.1
10 Height(H) mm 76 1.0
LID
1 Top Diameter (internal) (L1) mm 133.5 0.3
2 Top Diameter (internal) (L2) mm 83.2 0.3
3 Diameter (External) (L3) mm 142 0.5
4 Diameter (External) (L4) mm 91.5 0.5
5 Thickness mm 0.6 0.1
6 Weight of Lid mm 8.0 2.0
7 Product Height (Container + Lid) mm 77.0 1.0
  • Product Specification - 750 ML

S.No Parameter Unit Standard Tolerance(+/-)
1 Volume of closed container with lid ml 760 2
2 Weight of container gm 31.17 0.3
3 Top Diameter (internal) (D1) mm 164 0.3
4 Top Diameter (internal) (D2) mm 100 0.3
5 Bottom Diameter (External) (D3) mm 155 0.3
6 Bottom Diameter (External) (D4) mm 92 0.3
7 Total Length (External) (D5) mm 175 0.3
8 Total Length (External) (D6) mm 112 0.3
9 Thickness mm 0.7
10 Height(H) mm 72 0.1
LID
1 Top Diameter (internal) (L1) mm 163 0.3
2 Top Diameter (internal) (L2) mm 99 0.3
3 Diameter (External) (L3) mm 167 0.3
4 Diameter (External) (L4) mm 103 0.3
5 Thickness mm 0.6 0.1
6 Weight of Lid mm 12.7 0.3
7 Product Height (Container + Lid) mm 72.6 0.1
